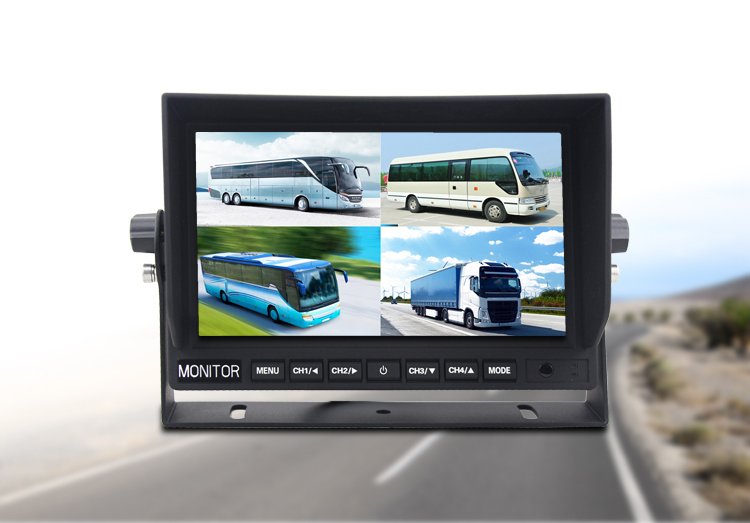

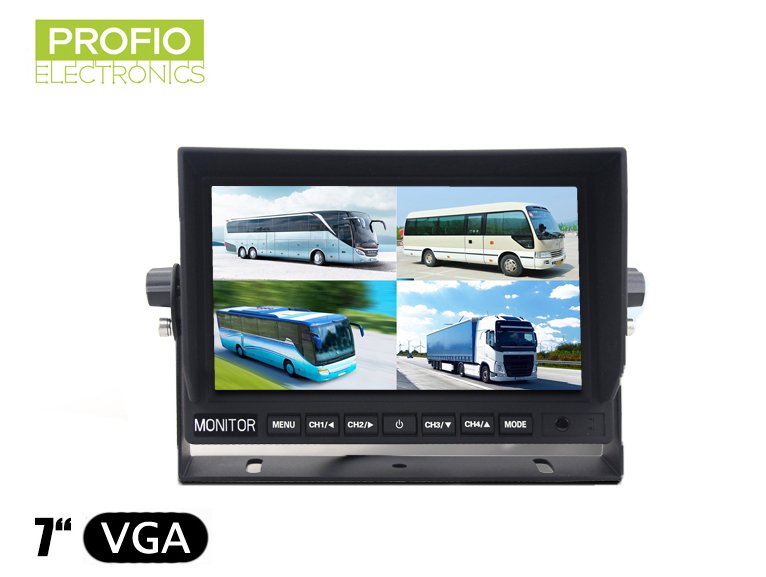

7" LCD monitor with the possibility to connect up to 4 reversing cameras

Code: 15-022
U$130.90 Price excl. VAT: U$109.08
in stock Products are in stock, ready to send.
Yes! We Ship To US
+

7" LCD monitor with the possibility to connect up to 4 reversing cameras. It makes this monitor an ideal assistant while reversing or for better orientation in various operations with smaller and larger vehicles.

Buyer protection

  • The free exchange of goods within 30 days
  • Warranty for products - 24 months
  • Money back guarantee within 14 days

Product description

7" LCD monitor with the possibility to connect up to 4 reversing cameras. It makes this monitor an ideal assistant while reversing or for better orientation in various operations with smaller and larger vehicles. You have the buttons right on the monitor to switch between the cameras or to view all four monitors together. Monitor allows you to switch between various options of the camera displaying, depending on how many cameras you have connected and which of them you want to select as the main ones.

Once the camera is connected to the LCD monitor, you can adjust the mirror image of each camera as needed, so the right and left side is realistically displayed at reversing. With this system, you know exactly what is behind or around the vehicle. It is suitable for van, minibus, caravan, bus, truck, semi-trailers trailers, agricultural machinery and other vehicles. The monitor is equipped with an adjustable bracket that can be attached to the required space. It also includes a sun visor that guarantees a clear picture and no glare, and backlit buttons make it easy to control in the dark.

7 lcd monitor with 4 cameras


Up to 4 cameras can be connected to the monitor, which you can choose from our menu as needed, and connect them to the monitor via 15 or 20 meter 4-pin cables. The 4-pin connector that connects the camera with the cable is waterproof, as well as the camera is dustproof and damage-resistant. Installation is simple. The power cables are located directly on the monitor and the individual cameras are powered through a 4-pin cable directly from the monitor, so is not necessary to connect each camera to the source. The monitor also includes 4 connecting cables to connect one camera to the reversing lights. When you reversing, the selected camera will be automatically displayed on monitor. A 4pin-cinch connector is also in package of the monitor, that can be in case of need used for connection of your old camera via a classic cinch connector, to this profi system.

4 LCD camera 7 + camera with IR


In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windscreen or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.



PLUS 7" LCD monitor
plus Up to 4 reversing cameras can be connected
plus Mirror image (reflection)
plus The option to display all 4 cameras on monitor at the same time
plus OSD menu with remote control
plus Display resolution 800x480px



Technical specifications of monitor:

7" TFT LCD monitor
System: PAL/NTSC
Aspect ratio: 16:9
Monitor resolution: 800 x 480
Inputs: 4x
Contrast: 300:1
Adjustable brightness, contrast, color
Power supply: DC 12V-24V
Power consumption: 5W
Operating temperature: -10ºC to 60ºC
Storage temperature: -20ºC to 70ºC
Dimensions: 182 x135 x 24 mm

Package contents:

1x 7" LCD monitor
1x Remote control
1x Sun visor
1x Console for mounting the monitor
1x Screws for mounting the monitor
1x Power cord
1x Reduction 4pin-cinch
1x Manual
