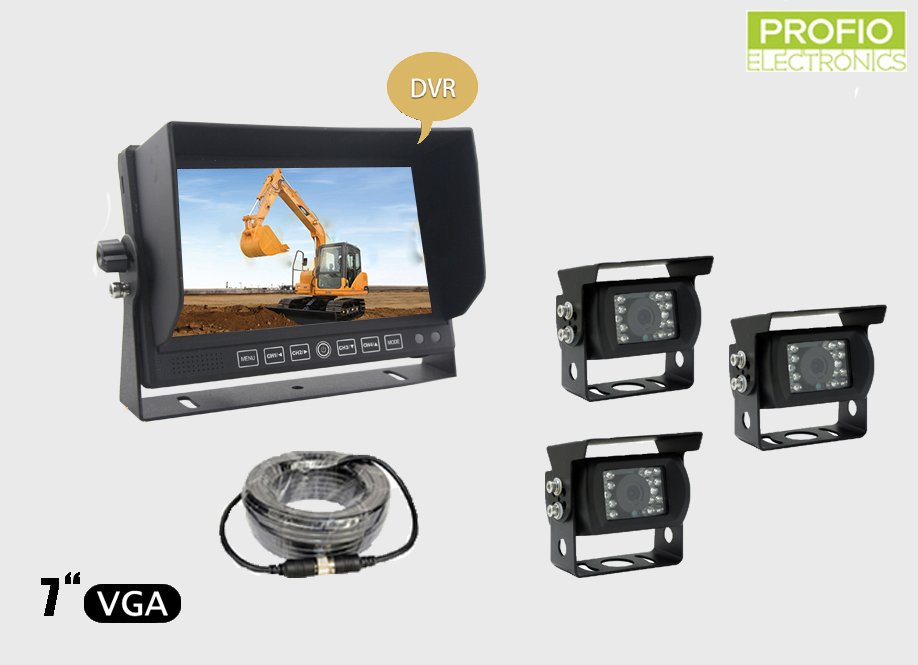

Set for parking with 7" LCD monitor with recording + 3x waterproof camera with 150° angle

Set for parking with 7" LCD monitor with recording + 3x waterproof camera with 150° angle and night vision up to 13m. This camera parking set of brand PROFIO ELECTRONICS allows you to record data on a memory card and record the recordings from all 4 cameras at once. Thanks to this reversing set, you will have an overview of the space around you and, in addition, also the video for the eventual need to prove the on-road situation. The power cables are located directly on the monitor and the individual cameras are powered through a 4-pin cable directly from the monitor, so you do not need to connect each camera to the source. It is possible to switch the image between individual cameras or to display them next to each other.

This extraordinary set includes DVR 7" LCD monitor + 3x waterproof camera + 3x 10m, 15m, 20m cable (included in pack) of your choice to connect camera with monitor (1 additional cameras can be connected).The camera monitor is equipped with the brackets and cables needed to mount it to the desired location, making it suitable for different types of larger cars, minibus, bus, semi-trailers, trailers, agricultural machines, or trucks. The pin connector that connects the camera to the cable is waterproof as well as dustproof and anti damage, ensuring minimum failure and long life of the set.

7" LCD monitor with the ability to split images up to 4 cameras in real time and record on a micro SD

Installing and assembly of this parking set (reversing cameras and monitor) is very simple.

Up to 4 cameras can be connected to the monitor, which can be selected from our menu as needed and based on the DVR monitor can be stored on the memory card. The monitor is equipped with an adjustable bracket that you attach to the required location. Also included is a sun visor that guarantees a clear picture and no glare and backlit buttons make it easy to control in the dark. The reverse camera meets IP66 degree of protection, making it waterproof, dust-proof and resistant to mechanical damage. The camera has a durable aluminum alloy body and can be mounted on a variety of surfaces via a bracket. Camera power and signal transmission is through a high-quality, unshielded 4-pin connector that has a waterproof finish that will make it easier for you to install. The camera is powered directly from the reverse monitor with a voltage of 12V.

In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windscreen or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.

7" LCD monitor
IR night vision up to 13 m
Viewing angle up to 150°
IP66 waterproof and resistant to damage
Up to 4 reversing cameras can be connected
You can view all 4 cameras at the same time on the monitor
OSD menu with remote control
DVR recording feature from cameras
Record resolution at 640x480 at 25fps
Display resolution 1024x600px

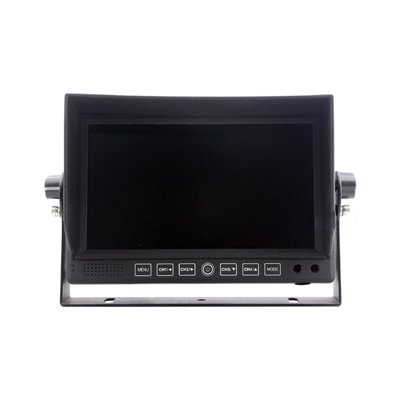

Technical specifications of the monitor:

• 7" DVR TFT LCD monitor
• SystemPAL/NTSC
• Aspect ratio16:9
• Monitor resolution1024 x 600
• Inputs4x input for the camera
• DVR video recording4-channel recording
• Video formatAVI
• Video resolution640x480
• Frame ratio25 fps
• MicroSD card supportup to max. capacity 32GB
• Adjustable brightness, contrast, color
• Power supplyDC 12V-24V
• Power consumption5W
• Working temperature-10ºC to 60ºC
• Storage temperature-20ºC to 70ºC
• Dimensions182 x135 x 24 mm

Technical specifications:

Image sensor: MIX SONY225 CMOS 1/3"
Resolution: 510x492px
System: PAL/NTSC
Minimum illumination: 0,1 LUX
IR night vision: yes 18 IR LEDs
Night vision distance: 13 m
Viewing angle: 150°
IP protection class: IP 66 waterproof, dust-proof, resistant to damage
Power consumption: 3W
Working temperature: -20 to 75° C
DC power supply: 12V

Package contents:

• 1x 7" LCD monitor
• 1x Remote control
• 1x Sun visor
• 1x Console for mounting the monitor
• 1x Screws for mounting the monitor
• 1x Power cord
• 1x Manual
• 3x Universal reverse camera
• 3x Console for mounting the camera
