Mini reversing HD camera with night vision 15m - 11 IR LED and IP68 protection

Code: 19-112
U$ 75.90 Price excl. VAT: U$ 63.25
in stock Products are in stock, ready to send.
Yes! We Ship To US

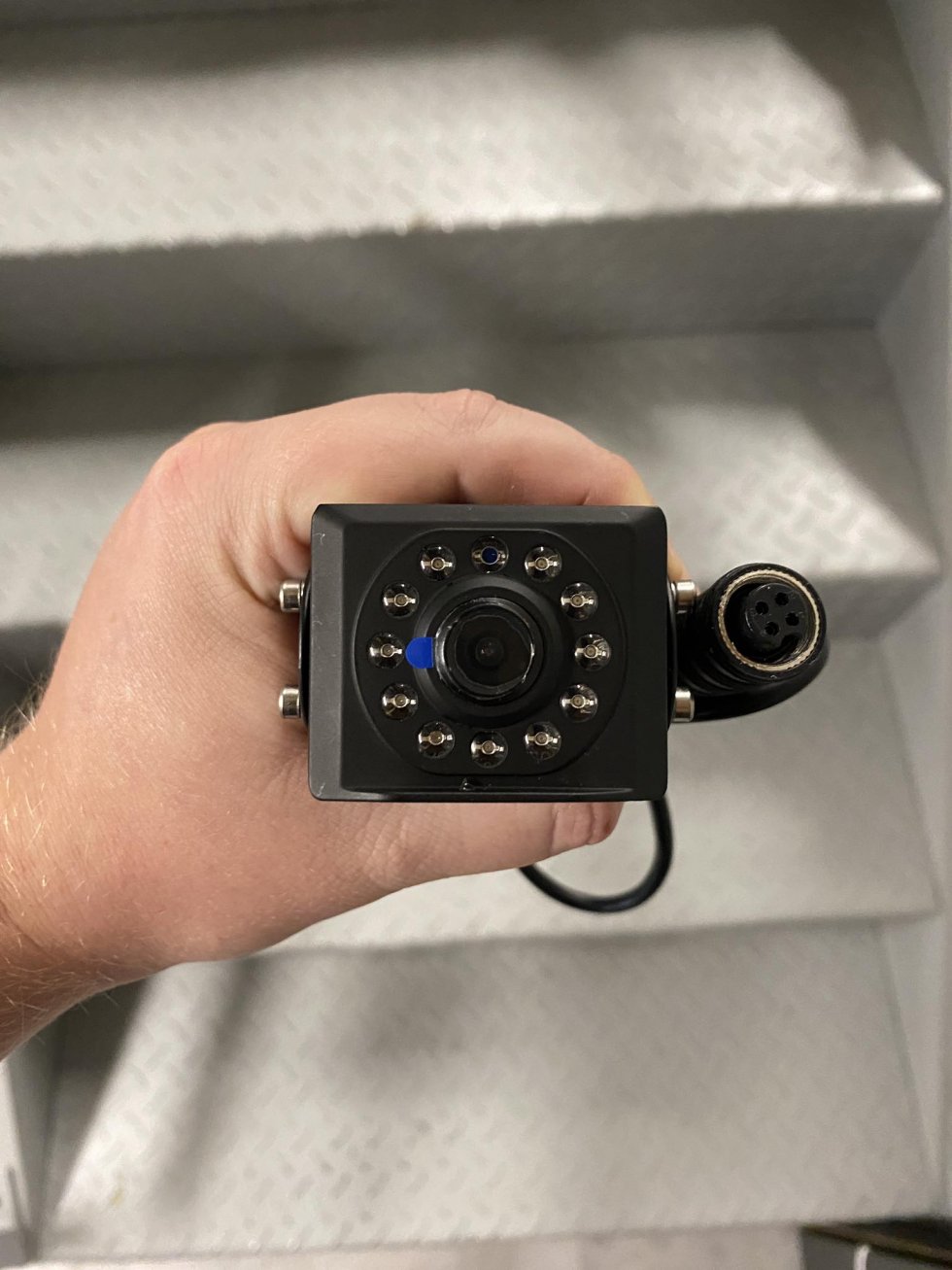

Mini reversing camera 55x55x55 mm with HD resolution 720P and night vision 15m - 11 IR LED and IP68 protection and 145° viewing angle.

Buyer protection

  • The free exchange of goods within 30 days
  • Warranty for products - 24 months
  • Money back guarantee within 14 days

Product description

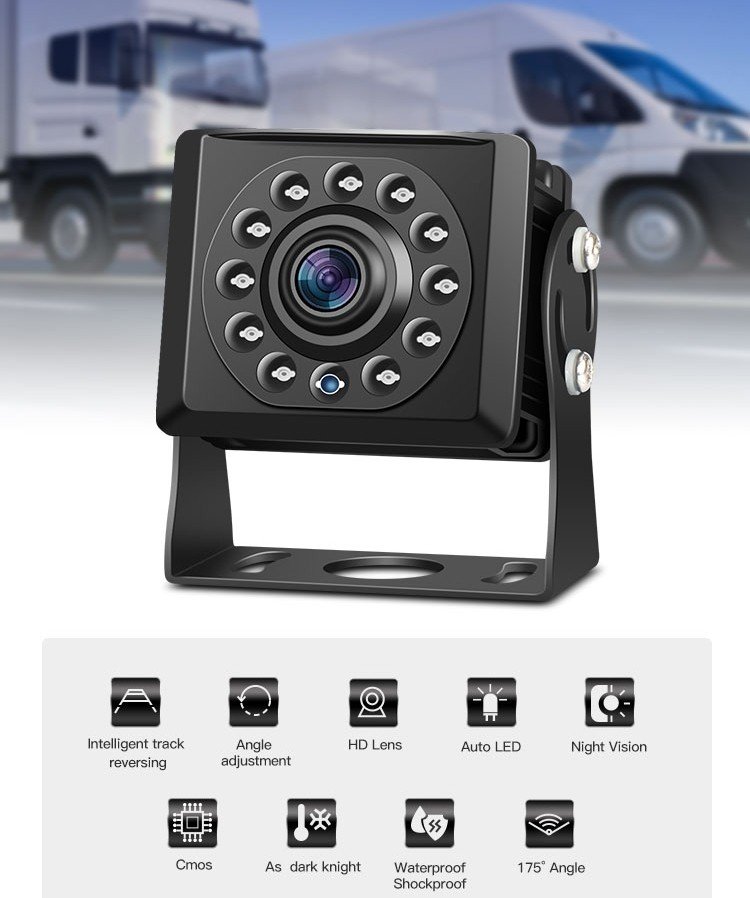

Mini reversing camera 55x55x55 mm with HD resolution 720P and night vision 15m - 11 IR LED and IP68 protection and 145° viewing angle. This powerful backup camera is the right solution for monitoring the vehicle's surroundings. It gives you an overview of what is happening around the vehicle when it is moving or reversing. The parking camera has night vision with 11 IR LEDs and a afterglow of 15 meters. The camera has a wide range of uses, as it is suitable for larger cars, vans, minibuses, buses, semi-trailers, trailers, agricultural machinery or trucks. The 1/4 CMOS image sensor with HD resolution of 1280x720 pixels enables high-quality and sharp image transmission.

mini reversing camera with night vision

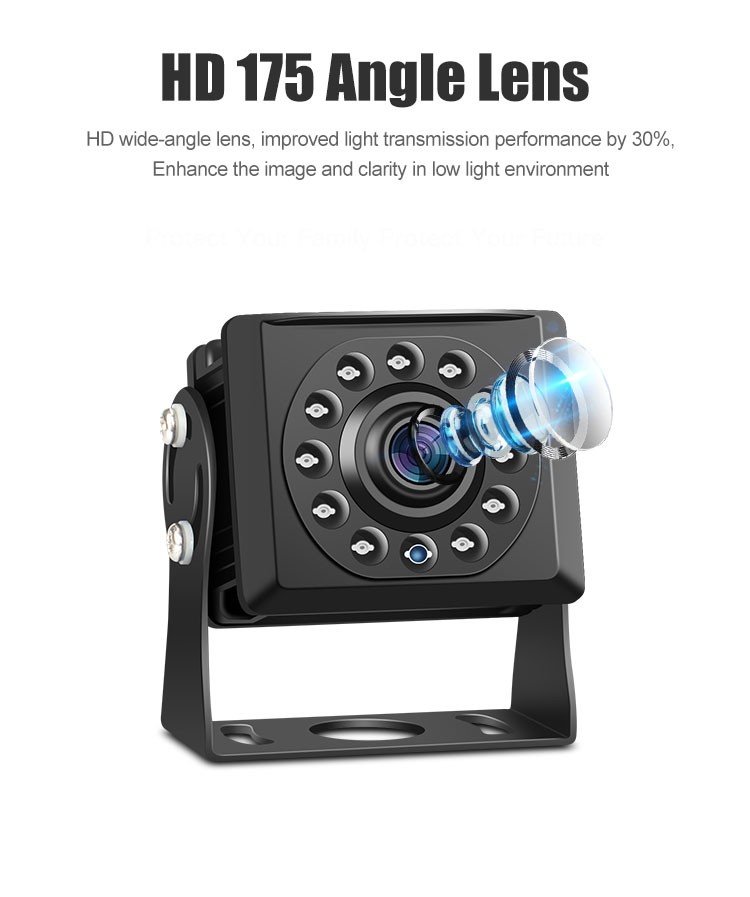

The reversing camera has a scanning angle of up to 145°, what is a sufficient range for the needs of reversing, or monitoring the movement of the vehicle in an environment where the increased attention is required in terms of safety. This HD camera meets the degree of protection IP68 which makes it waterproof, dustproof and resistant to mechanical damage. The camera body itself is protected by a durable alloy case. The camera can be installed on various surfaces, using a metal bracket, thanks to which you can tilt it and fix it into the desired position. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish, what will make your work easier during installation. The camera is powered directly from the reversing monitor with a voltage of 12-24V.

backup camera for van

IP68 protection guarantees resistance to water, mud, dust and mechanical damage

ip68 backup camera


PLUS Reversing camera for all cars
plus 11x LED IR night vision 15 m
plus Durable alloy camera body
plus Viewing angle up to 145°
plus IP68 waterproof, dustproof and damage resistant


Technical specifications:

Image sensor: CMOS 1/4"
Resolution: HD 1280x720 (500 TV lines)
System: PAL/NTSC
Minimum lighting: 0 LUX (IR on)
IR night vision: yes 11 IR LEDs
Night vision distance: 15 m
Viewing angle: 145°
IP degree of protection: IP 68 waterproof, dustproof, resistant to damage
Power consumption: 3W
Working temperature: -20 to 70° C
DC power supply: 12-24V
Interface: RCA

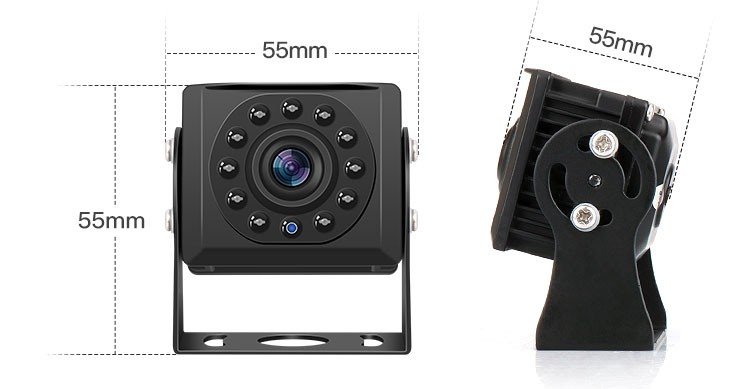

Dimensions: 55x55x55 mm

Package contents:

1x Reversing camera
1x Mounting set - 2 screws and Allen key
1x Manual

Product discussion (0)

Do you have questions about product?
Ask in discussion

No questions yet
We will write answer about your question to this e-mail.

Product rating (1)


reversing camera

Unobtrusive dimensions
Metal construction
Night Vision

it is compatible with the displays they have on offer, it serves me well, I am satisfied

Translated from: sk
