Product description

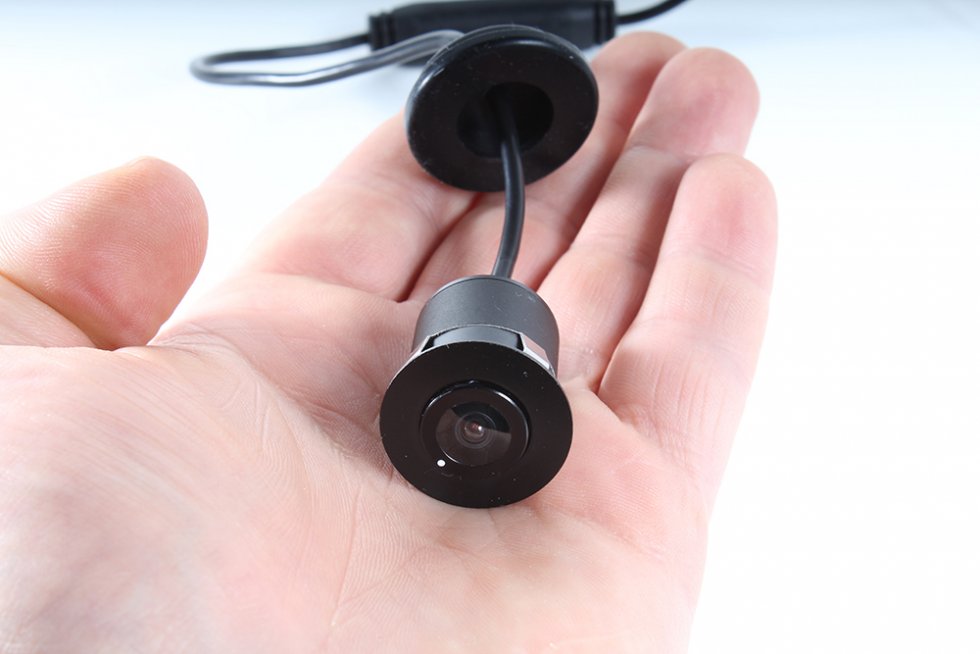

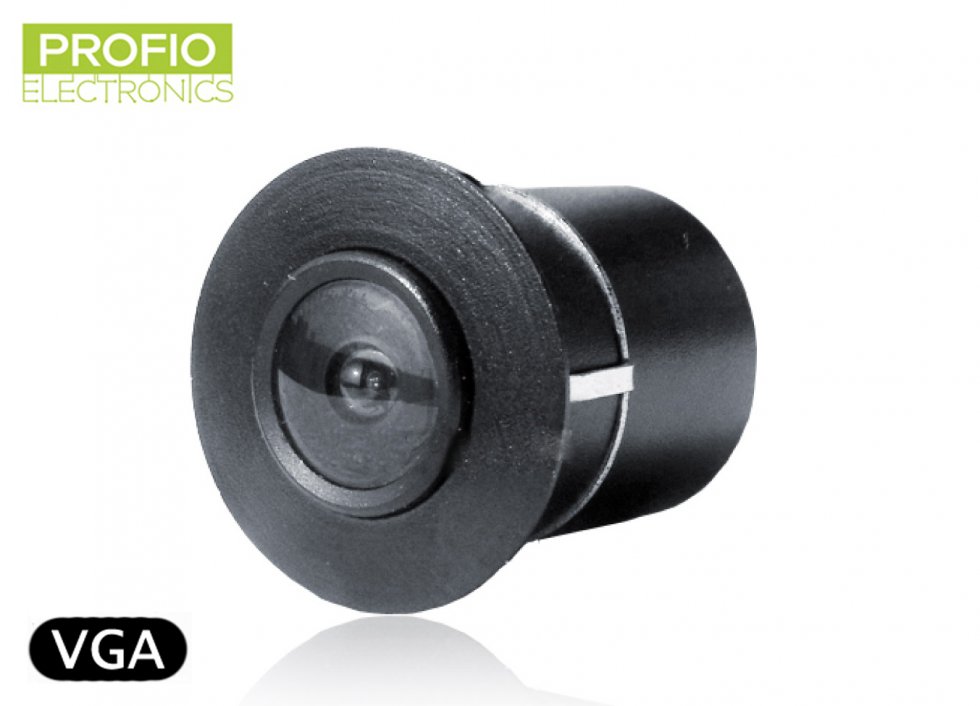

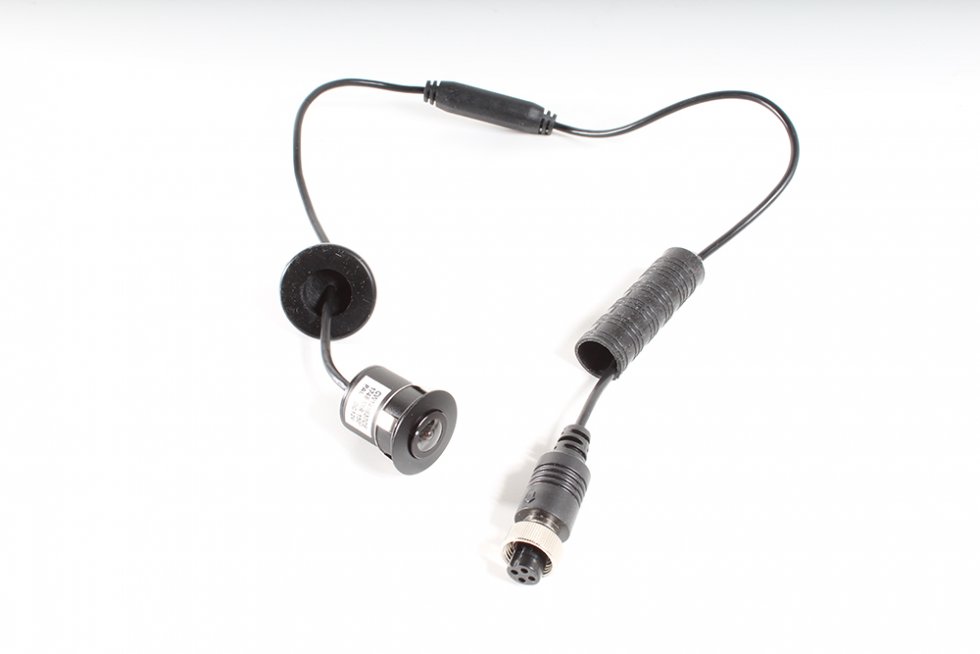

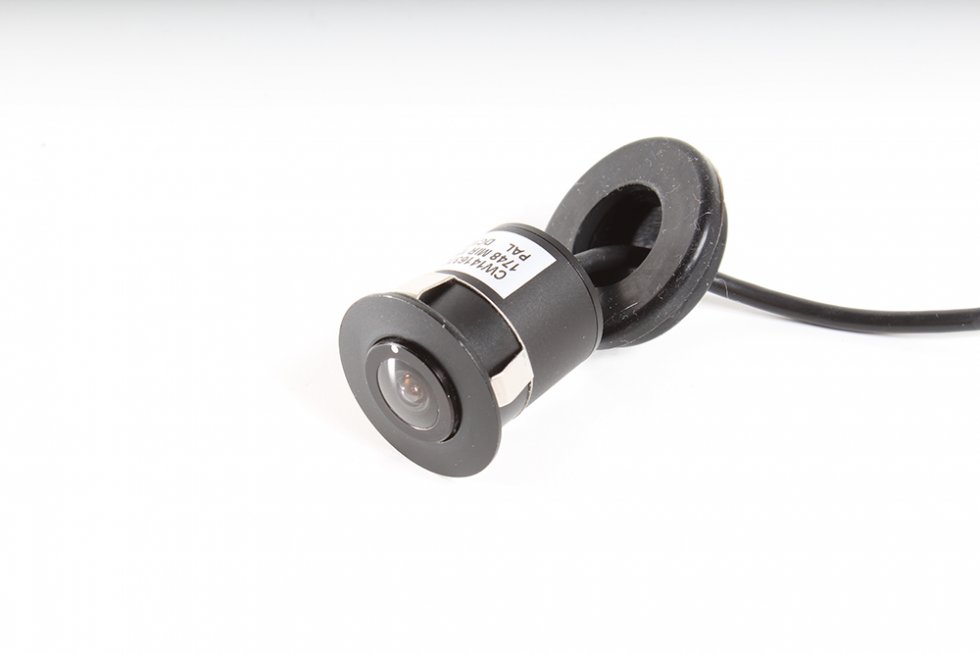

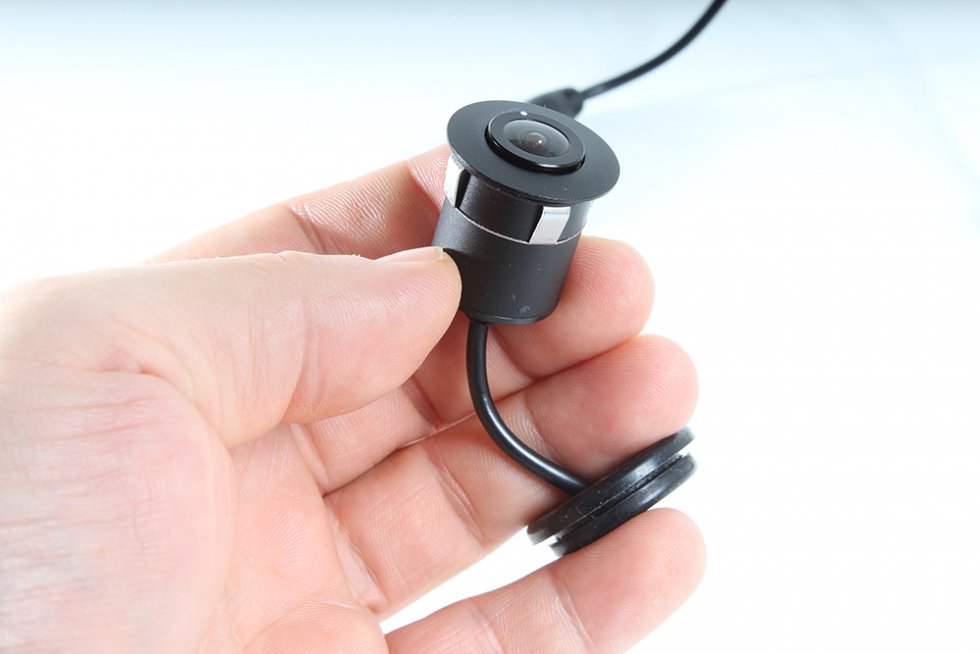

Micro universal waterproof reverse camera with a 150° angle of view lets you park safely when reversing and moving in the problematic surrounding. It gives you an overview of what's going on around the vehicle when it's moving or reversing. The camera is designed for a built-in installation into the vehicle body for auto-moto systems with rear-view. It is designed especially for cars and off-road vehicles, vans or minibuses. The 1/3 CMOS image sensor with a 728x488 resolution allows high-quality and sharp image transmission. The reverse camera has a scanning angle of up to 150°, what is sufficient range for reversing or monitoring the vehicle's movement in the areas where the increased safety attention is required. Camera power supply and signal transmission is through a high-quality, unshielded 4-pin connector that has a waterproof finish that will make it easier for you to install. The camera is powered directly from the reverse monitor with a voltage of 12V.
The reverse camera is compatible with all 4pin monitors in our offer.
Universal reverse camera
Installation into vehicle body
High-quality and sharp image transmission
Viewing angle up to 150°
Waterproof
Technical specifications:
Image sensor: CMOS 1/3"
Resolution: 728x488
System: PAL/NTSC
Minimum illumination: 0.1 LUX
Viewing angle: 150°
IP protection degree: waterproof
Power consumption: 3W
Working temperature: -20 to 70° C
DC power supply: 12V
Microphone: no
Dimensions: W 2,5cm x H 2,2cm
Package contents:
1x Universal reverse camera
